7110-7120 Single-Phase Power Meter

MICROTEST’s single phase power meter 7110/7120 has the wave crest factor of the input current as CF3/CF9 and able to measure all the values within measuring ranges. They have the fastest auto-shift speed amongst other testers of the same level, and the measuring span can be locked on rapidly to perform accurate power consumption analysis. The measuring range of both PM7110/7120 are 0.001W~16KW, and they are able to measure AC power consumption containing DC and obtain power factors with higher accuracy while analyzing the current signals from devices with asymmetrical positive and negative waveforms.

All the electronic devices on the market must comply with EU requirements for standby power consumption, and the manufacturers are making their effort to lower it as best as they can. PM7110/7120 are able to help the manufacturers to analyze power and energy consumption precisely and perform long-hours survey with a PC.

Also Read Single-Phase Power Meter 7110-7120

Fluke New Products - Sinetec Automation Pvt Ltd

Complete Solutions in test Measurement,Calibration and Condition Monitoring.

We are  Authorized Distributor For: Fluke

Fluke New Products

1. Fluke 1742,1746,1748 Three Phase Power  Quality Loggers

2. Fluke MDA-510and MDA-550 Motor Drive Analyzer

3. Fluke Ti401 & TiX501 Infrared Cameras

4. Fluke PTI120 Pocket Thermal Imager

5. Fluke II900 Sonic Industrial Imager

6. Fluke DS701 & ds703 FC Diagnostic Videoscope

7. Fluke 710 MA Loop Valve Tester

8. Fluke PQ400 Electrical Measurement Window



Also Read : Fluke New Products

FALCON™ Medium voltage PD monitoring

FALCON™ Medium voltage PD monitoring

FALCONTM is representing the latest state of the art technology for partial discharge monitoring (PDM) of MV assets, combining proven and patented technology from HV asset monitoring with economic requirements. FALCONTM is acquiring and processing high frequency PD signals locally detected by the sensors to which it is connected, whether inductive (HFCT), capacitive (TEV).

Industry Segments:

- TRANSMISSION & DISTRIBUTION

- PROCESS INDUSTRIES

- OIL & GAS

- MARINE & TRANSPORTATION

- RENEWABLES

- POWER GENERATION

- OEMS

Also Read Partial Discharge Testing & Monitoring

R&S Scope Rider handheld oscilloscope

  R&S Scope Rider handheld oscilloscope

When debugging embedded devices in the lab or analyzing complex problems in the field, the R&S®Scope Rider offers the performance and capabilities of a lab oscilloscope as well as the form factor and ruggedness of a battery-operated handheld device. Isolated channels combined with 500 MHz bandwidth makes it a perfect choice for power electronics applications. An integrated multimeter (two-channel model) or a multimeter mode (four-channel model) make the instrument the perfect tool for troubleshooting all kinds of electronics problems.

• Bandwidth: 60 MHz to 500 MHz
• Sample rate: up to 5 Gsample/s
• Memory depth: up to 500 ksample, 50 Msample segmented memory
• ADC resolution: 10-bit
• Isolated channels (CAT IV 600 V (RMS) / CAT III 1000 V (RMS))
• Integrated multimeter or multimeter mode

Also Read  R&S®Scope Rider RTH Handheld digital oscilloscope

5322A Electrical Safety Tester Calibrator

 5322A Electrical Safety Tester Calibrator

The 5322A Electrical Tester Calibrator helps calibration technicians comply with new regulatory standards up to four times faster than with traditional manual, multiple-product methods.The 5322A replaces the 5320A Electrical Tester Calibrator.



The 5322A calibrator facilitates compliance with exacting international standards such as the United Kingdom’s BS7671 17th Edition, IEC/EN Standards, Australia and New Zealand’s AS/NZS 3000 and Chinese verification/calibration regulations for various electrical testers.



The 5322A combines many functions into a single instrument, replacing discrete resistors, decade boxes and other custom solutions commonly used to calibrate electrical testers. This single-box solution speeds and simplifies calibration because users only need to learn, operate and maintain one calibrator rather than multiple instruments. And while it’s difficult to automate multiple instruments, the 5322A can be automated with MET/CAL® Calibration Software—further increasing speed and throughput.

Calibrate all major types of electrical safety testers with just one calibrator. The 5322A calibrates all major categories of electrical safety testers. The benefits of this calibrator are best described by the key functionality it brings to calibrating the individual workloads.

Broad workload coverage

The 5322A calibrates a broad range of equipment, including

• Hipot testers
• Insulation resistance testers (megohm-meters) including older analog testers
• Loop/line impedance testers
• Continuity testers
• Earth resistance testers
• Ground bond testers
• Leakage current testers
• Circuit breaker testers (RCD/GFCI)
• Multifunction installation testers
• Portable appliance testers (PATs)

Also Read  Fluke Calibration 5322A Electrical Tester Calibrator

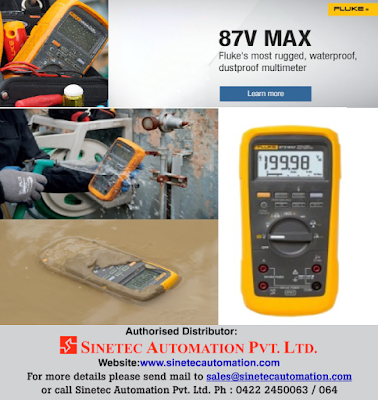

Fluke 87V MAX True-rms Digital Multimeter

Introducing Fluke’s most rugged multimeter Fluke 87V MAX

The Fluke 87V MAX True-rms Digital Multimeter is heavy duty: built for customers whose job takes them anywhere: hot, cold, wet, dirty, up ladders, down a hole. This is the DMM that works where others can’t. The 87V MAX contains all the trusted features of the regular 87V, plus:

Visit Demo Video

• IP67 rated

• Fully waterproof and dust proof

• Withstands drops up to 4-meters (13 feet)

• Industrial strength casing and holster

• Double the battery life

• Extended operating temperature of -40 °C (for up to 20

  minutes) to +55 °C.

Also Read Fluke 87V Digital Multimeter

Transformer Tester 5238

Transformer Tester 5238

5238  built-in Meter mode function will help you to save significantly on production facility cost, and because it could be used as a LCR power meter, you are able to elevate quality assurance and test method simultaneously i.e. leverage efficiency and lower facility cost.

MICROTEST transformer tester series offer exclusive fixture scan control kit that applies innovative CAT.5 network cable connection to simplify wiring structure and offer Open/Short calibration function, provide fixture zero-setting and high-frequency compensation functions to obtain higher accuracy for component testing. When the test frequency of the transformer becomes higher (higher than 200KHz), the interference from fixtures would also become bigger along with the test process going. Therefore, fixture zero-setting function is able to help the tester to acquire accurate measured values, which makes it become an indispensable device for quality assurance.

Also Read  Automatic Transformer Tester 5238

TDX 5000 - Tan Delta & Capacitance Diagnostic System For Power Apparatus.

TDX 5000 - Tan Delta Diagnostic System

TDX 5000 is developed as a compact solution for high voltage Capacitance and Tan Delta (Dissipation Factor) measurements. Using the reactor option, TDX 5000 can also perform tests on rotating machines.

• Fully automatic
• Variable output frequency: 1 - 500 Hz
• Output voltage up to 12 kV
• Tan Delta, capacitance, dissipation factor measurements and exciting current test
• PADS - Power Apparatus Diagnostic Software for automatic testing, assessment and report
• USB interface and Ethernet interface for PC connection
• Patented technology for capacitance and Tan Delta measurement
• Light and compact

Also Read ISA Tan Delta & Capacitance Test System TDX 5000

Rohde and Schwarz NGL200 Power Supply Series

R&S®NGL200 Power supply series

Due to their high accuracy and fast load recovery time, the R&S®NGL200 power supply series is perfect for challenging applications. Their two-quadrant architecture allows them to function both as a source and a sink to simulate batteries and loads. Their short recovery times enable them to handle fast load changes that occur for example when mobile communications devices switch from sleep mode to transmit mode.

• Max. output power: 120 W
• Voltage per channel: 0 V to 20 V
• Max. current per channel: 6 A
• Load recovery time: < 30 µs
• Ripple and noise: < 500 µVRMS / < 1 mARMS

Also Read rohde and schwarz power supply

Fluke P3100 Deadweight Tester

  Fluke P3100 Deadweight Tester

The P3100 Models are available in single or dual piston formats for increased operating ranges. Units can be supplied in psi, bar, kgf/cm², and MPa. These robust instruments are highly accurate, quick and easy to use. Units feature a built-in priming pump for large volume applications, piston flotation indicators and a high quality screw press for fine pressure control.

Visit Video  Demo

The P3100 Series is the culmination of over 50 years of experience in the production and design of high performance pressure standards. With features designed to improve accuracy and performance, increase reliability and simplify operation these deadweight testers can be used to calibrate virtually any pressure sensing device, including transducers, transmitters, gauges or pressure switches.
Each instrument is supplied with a detachable lid which makes it neat, compact and easily portable. The weight masses are stored in a high-quality case with a self locking mechanism to protect them during transit.

All units are provided with a traceable certificate of accuracy, weight mass details, 1/8 inch, 1/4 inch, 3/8 inch and 1/2 inch NPT or BSP female adaptors, operating fluid (where applicable) and spare seals.

The piston/cylinder assemblies are manufactured to the very highest standards with certified accuracies traceable to international standards laboratories such as the National Institute of Standards and Technology (NIST).

Key features

• Pressure ranges to 60,000 psi (4000 bar)
• 0.015% of reading accuracy standard (0.008% optional)
• Single or dual piston format
• Built-in hand pumps standard
• Mounted spirit level with adjustable feet
• Units can be trimmed to local gravity FOC

Also Read calibration deadweight tester

Fluke DS703 FC Diagnostic Scope

Fluke DS703 FC Diagnostic Scope

Fluke DS703 FC Diagnostic Scope,7” capacitive touch screen for accurate diagnostics in difficult to reach spaces. 720p video recording inspection camera. Adjustable LED lighting and digital zoom for quality images. Up is Up® technology rotates the display screen to allow for appropriate image display, regardless of the orientation of the probe.

Visit Demo Video

Save time with the Fluke Connect® system

Wirelessly sync images directly from your diagnostic scope to the Fluke Connect® system, and attach to an asset record or work order. Having access to maintenance records simultaneously at the inspection site and from the office or an off-site location enables faster decision making and real-time collaboration between team members. You can also live stream images or videos from the diagnostic scope to a smartphone or PC.

Expand the flexibility of your videoscope with optional probes offering cameras that range in diameter from 3.8 MM to 8.5 MM and probes as long as 20 meters. Equip yourself the right probe for your environment.

Also Read - Fluke DS701 Diagnostic Videoscope

LCR Meter 6376 MICROTEST

 LCR Meter 6376 MICROTEST

The 6376 LCR Meter that is provided with high accuracy and speed. It is a cost and multiple- function utility and is able to perform the component test entirely. 6376 can collocate with DC Bias. The friendly operation interface design is in synchronization with the international trend and easy to operate to import into the production lines quickly. Synchronous tests with multiple parameter settings. Because of the high-precision values of measured data and superior efficacy, it must be a necessary testing instrument of components and materials. It supports the interfaces of RS232, LAN, USB and GPIB PC connections.

• Basic accuracy up to 0.1%
• Synchronous tests with multiple parameter settings
• Measurement of wide range of functions: Freq. to 5 Digits, signal level of 10mV to 2Vrms
• Collocating DC Bias to progressing current scanning analysis
• Fixture design capabilities, Specific customized services for clients
• LCR Meters are all compatible with convenient and efficient Meter Link Software

CBA 3000 - ALL IN ONE CIRCUIT BREAKER ANALYZER

CBA 3000 - ALL IN ONE CIRCUIT BREAKER ANALYZER

The ultimate all-in-one circuit breaker analyzer: safer, faster and more accurate than ever.  It allows any timing test, motion and speed analysis, multiple contemporary static and dynamic contact resistance measurements, Both Sides Grounded (BSG) tests, Undervoltage condition test and more. All these functions are integrated in a single lightweight test case without the need of connecting additional external modules.

• Faster: one single connection set up to perform automatically all possible Circuit Breaker tests
• Safer: Both Side Grounded feature without any additional external boxes/modules
• Three/Six/Nine static and dynamic contact resistance measurement – 200A DC output each
• Three phase first trip measurement
• 16 or 24 fully user configurable Main/PIR and auxiliary input contacts
• 2, 4 or 6 Open / Close coil commands
• 3 analog linear/rotary transducers and 3 digital transducers inputs for travel/ speed analysis
• 8 analog input measurements: battery voltage, motor current, pressure transducers and other measurements
• Minimum voltage trip coil test, fully automatic
• On-screen control and test results evaluation
• TDMS software suite for analysis, archiving and test report creation
• Library of standard test plans available with the test sets

R&S®RTM3000 oscilloscope

R&S®RTM3000 oscilloscope

General Product data applies under the following conditions:

• Three hours storage at ambient temperature followed by 30 minutes warm-up operation
• Specified environmental conditions met
• Recommended calibration interval adhered to
• All internal automatic adjustments performed, if applicable

Key facts

• Bandwidth: 100 MHz to 1GHz
• Sample rate: up to 5 Gsample/s
• Memory depth: up to 80 Msample
• ADC resolution: 10-bit
• Display: 10.1’’ capacitive touchscreen

See more of your signal with the power of 10

Designed as daily problem-solving tool, the R&S®RTM3000 combines the power of ten (10-bit ADC, 10 times the memory and 10.1" touchscreen) with a Rohde & Schwarz probe interface for all Rohde & Schwarz probes.

• Four times more vertical resolution than standard 8-bit ADCs
• Maintains fast sampling rates at all times
• 10.1" touchscreen with gesture support

Also Read rohde & schwarz oscilloscope price

Fluke 6270A Pressure Controller Calibrator

Fluke 6270A Pressure Controller Calibrator

The 6270A features pressure ranges from low differential pressure to 20 MPa (3000 psi), which covers the requirements of most gauges and sensors. Two levels of accuracy, 0.02 % FS or 0.01 % reading, let you balance your need for accuracy with the limits of your budget.

Thanks to its modular design, the 6270A is flexible enough that you can install modules with different accuracy classes within the same chassis. You can buy the highest level of accuracy for the pressure ranges that require it and a lower, more economical level of accuracy where applicable.

The 6270A’s accuracy specifications are provided in full and supported by a Technical Note that details its measurement uncertainty, so you know exactly what you are getting. As with all Fluke Calibration instruments, these specifications are conservative, complete, and dependable.

Also Read  6270A Modular Pressure Controller

Fluke MDA-510 and MDA-550 Motor Drive

Fluke MDA-510 and MDA-550 Motor Drive

Simplify complex motor-drive troubleshooting with guided test setups and automated drive measurements that provide reliable, repeatable test results.

The Fluke MDA 510 and MDA 550 Motor-Drive Analyzers save time and eliminate the hassle of setting up complex measurements, while simplifying the troubleshooting process for variable frequency drives. Simply select a test and the step-by-step guided measurements show you where to make voltage and current connections, while the preset measurement profiles ensure you will capture all the data you need for each critical motor-drive section—from the input to the output, the DC bus, and the motor itself. From basic to advanced measurements, the MDA-500 Series has you covered, and with a built-in report generator you can quickly and easily generate as-found, and as-left reports with confidence.

• The MDA-510 and MDA-550 are the ideal portable motor-drive analysis test tools and can help safely locate and troubleshoot typical problems on inverter type motor-drive systems.

• Measure key motor-drive parameters including voltage, current, DC Bus voltage level and AC ripple, voltage and current unbalance and harmonics (MDA-550), voltage modulation, and motor shaft voltage discharges (MDA-550)

• Perform extended harmonics measurements to identify the effects of low and high order harmonics on your electrical power system.

• Conduct guided measurements for motor-drive input, DC bus, drive output, motor input and shaft measurements (MDA-550) with graphical step-by-step voltage and current connection diagrams.

• Use simplified measurement setup with preset measurement profiles to automatically trigger data collection based on the chosen test procedure.

• Create reports quickly and easily that are perfect for documenting troubleshooting and collaborative work with others.

• Measure additional electrical parameters with full 500 MHz oscilloscope, meter and recording capability for complete range of electrical and electronic measurement on industrial systems.

Also Read : MDA 510/550 - Fluke Electronics

7621 Hipot Tester - Microtest - Sinetec Automation Pvt . Ltd

7621 Hipot Tester - Microtest

7621 is 8 channels Hipot tester. Applications include transformers, motors, capacitors, inductors, wires and wave filters.

• 8 Channel scanning test
• Graphics LCD window
• Built-in programmable PLC remote control interface
• Open/short detect function (7621)
• Connected to Impulse Winding Tester (7700)
• Provide AC high voltage, DC high voltage and insulation test
• Ramp time setting
• Built-in RS-232 interface

ISA DRTS 66 RELAYS, ENERGY METERS, TRANSDUCERS AND POWER QUALITY METERS

ISA DRTS 66 RELAYS, ENERGY METERS, TRANSDUCERS AND POWER QUALITY METERS

This advanced secondary injection relay test system and power system simulator is designed to satisfy all the needs related to commissioning and maintaining substations and to testing protection relays, energy meters, transducers and power quality meters.

• Manual control with color display
• Simultaneously available: 6 Current and 6 Voltage plus 1 battery simulator outputs
• High current outputs : 6 x 32 A, 3 x 64 A,1 x 128 A
• High power outputs: 6 x 430 VA, 3 x 860 VA, 1 x 1000 VA
• Voltage outputs: 6 x 300V at 100 VA
• High accuracy outputs: better than 0.05%
• IEC 61850 protocol interface
• USB and Ethernet interface
• Pen drive interface
• End to end test with GPS or IRIG-B
• Advanced testing and data management software TDMS
• Complete library of relays from the major manufacturers.

R&S®FPC1500 Spectrum Analyzer

R&S®FPC1500 Spectrum Analyzer

The R&S®FPC1500 is the only entry level spectrum analyzer with the value of three instruments – a spectrum analyzer, vector network analyzer and a signal generator all in one instrument.

Value of Three: The R&S®FPC1500 Spectrum Analyzer is the only spectrum analyzer on the market with three instruments in one – perfect for applications like IoT device development.

• RF performance engineered in Germany
• 10.1" WXGA (1366 x 768 pixel) display – largest and highest resolution in its class
• Frequency range from 5kHz to 1GHz, keycode upgradable to 2GHz/3GHz
• Resolution bandwidth settings down to 1Hz
• Tracking generator and independent CW signalgenerator
• Built-in VSWR bridge
• One-port vector network analyzer with Smith chart display
• App controlled through any iOS or Android device
• WiFi remote control❙3-year standard warranty

8845A 8846A 6.5 Digit Precision Multimeters

8845A 8846A 6.5 Digit Precision Multimeters

The Fluke 8845A and 8846A 6.5 digit multimeters have the precision and versatility to handle your most demanding measurements, on the bench or in a system. These DMMs are both high performance and feature rich, yet also remarkably easy to use.

These desktop multimeters perform the functions you would expect to see in a multifunction DMM, including measuring volts, ohms, and amps. Basic V dc accuracy of up to 0.0024 %, 10 A current range, and a wide ohms range give you an unbeatable combination of measurement capability.

You can also use the 8845A and 8846A DMMs to measure frequency and period. In addition, the 8846A measures temperature and capacitance. The functions of a counter, capacitance meter, and thermometer are built in for unparalleled versatility. Extend the meters’ utility even more with their graphical display modes, including TrendplotTM paperless recorder mode, statistics, and histograms—features you won’t find on other multimeters.

Of course, these desktop DMMs are also durable and dependable, features you expect from any Fluke meter. This unique combination of features and performance makes the 8845A and 8846A an unbeatable value for a wide variety of applications, including manufacturing test, research and development, and service.

Also Read  Fluke 8845A 6.5 Digit Precision Multimeter

Fluke 438-II Power Quality Analyzer & Motor Analyzer

Fluke 438-II Power Quality Analyzer & Motor Analyzer

Quickly and easily discover electrical and mechanical performance of electric motors, and evaluate power quality with a single test tool

The Fluke 438-II Power Quality and Motor Analyzer adds key mechanical measurement capabilities for electric motors to the advanced power quality analysis functions of the Fluke 435 Series II Power Quality Analyzers. Quickly and easily measure and analyze key electrical and mechanical performance parameters such as power, harmonics, unbalance, motor speed, torque and mechanical power without the need of mechanical sensors. Fluke 434-II, 435-II and 437-II Power Quality Analyzer users can add motor analysis capabilities to their existing units with the Fluke-438-II/MA Motor Analyzer upgrade kit. The 438-II uses data from the motor rating plate for either NEMA or IEC rated motors to aid the calculation of the mechanical parameters.

Visit Demo Video

Key features:

The 438-II Power Quality Analyzer & Motor Analyzer helps you effectively evaluate electrical and mechanical performance just by hooking up voltage and measuring current, providing you with an unprecedented level of data.

Brings key motor analysis parameters like speed, torque and mechanical power and calculates motor efficiency without mechanical sensors

Includes full power quality and electrical energy analyzer functionality

Highest safety rating in industry; 1000 V CAT III / 600 V CAT IV

Also Read Fluke 438-II Power Quality and Motor Analyzer
